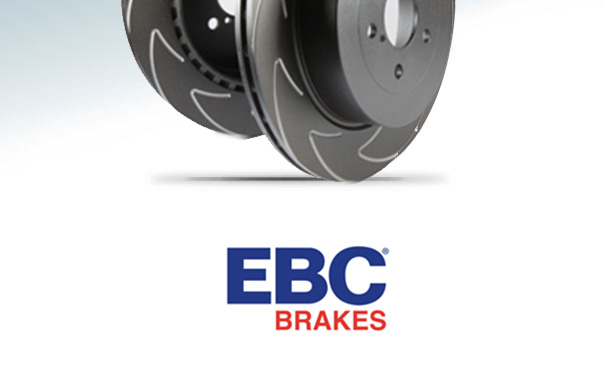

EBC brake discs, model BSD1434 (BSD)

Description

EBC BRAKES brake discs and pads

EBC is a brand we all petrolheads know. Reasonably priced, high quality brake discs with one of the widest selections on the market. EBC produces brake discs and pads in various types to match your driving profile optimally.

While the price level is slightly higher than the cheapest spares out there, these products still come with a very reasonable price tag compared to OEM or other similar performance brands. Direct OEM fitment, quality you can trust and suitable materials for everything from daily driver to track beast.

• Product series: BSD
• Package size: Kit includes a pair (2pcs) of brake discs
• Number of wheel bolts: 5 pcs
• Disc Diameter: 320 mm
• Disc total height: 49 mm
• Disc thickness (max/min): 25/23 mm



EBC catalogue is an exceptionally comprehensive one, thus EBC products are listed in our database by the SKU product number.

1. Check availability for your vehicle at EBC online – > EBC Brakes Catalog
2. Find your products from our webshop by writing the SKU in search field (e.g. GD123, USR123..)
3. Our team is always happy to help you choosing the correct parts for your vehicle, don’t hesitate to send us an inquiry with your cars model specification.

EBC BRAKES disc series ABC

EBC catalogue offers various brake discs to match your needs.

EBC Standard

Brake discs essentials, high quality disc to replace the worn out OEM parts. This disc type is recognized by the part number starting with D, for example “D123”.

• Standard disc for daily driving, no grooves or slots.
• Affordable price
• Thermic black coating for maximum corrosion resistance
• High quality spare part

EBC Turbo-Groove (GD)

Most popular EBC disc for demanding car enthusiast. More or less an industry standard in sport cars for decades. Balanced geometry, optimal for dynamic driving or track days.
Turbo-Groove disc is recognized by the part number starting with “GD”, for example “GD123”.

• Wide aperture grooves help to remove excess surface gasses between pad and disc
• ”Blind” slots help to prevent cracking or break down
• Designed for up to +900C glowing hot temperatures without getting damaged.
• Thermic black coating for maximum corrosion resistance
• Choice of a car enthusiast, accepts various pad materials

EBC Ultimax USR

Disc with a more subtle grooving, minimal brake noise offers an optimal choice for “daily driver” as well while still offering performance. These discs are recognized by the part number starting with “USR”, for example “USR123”.

• Grooving helps to remove excess surface gasses between pad and disc
• Ultrasilent operation with USR groove design
• Thermic black coating for maximum corrosion resistance
• Compatible with various pad materials

EBC BSD Blade Discs

Subtle Bi-Directional grooving offers improved cooling for brake pads, while keeping the brake noise minimal. These discs can be recognized by the part number starting with “BSD” for example “BSD123”.

• Bi-Directional grooving helps to remove excess surface gasses between pad and disc efficiently
• Ultrasilent operation with BSD groove design
• Unique looks
• Thermic black coating for maximum corrosion resistance
• Compatible with various pad materials

EBC 2-piece Floating discs

2-piece floating discs for heavy duty trackday or race use.

• Optimized for competition use
• Available also for cars with stock 2-piece discs
• Serviceable, capable, but significantly higher price level
• Limited selection

Complete your EBC kit with suitable brake discs from either our EBC Brake pad selection or catch a set of compromise free Racing pads from FERODO RACING department.

Don’t forget your high performance HEL Performance brake lines in the color of your choice, with high performance brake fluids.

This disc might fit following models:
AUDI A1 8X 1.4 Turbo 2014-2018
AUDI A1 8X 1.4 Turbo 2014-2018
AUDI A1 8X 1.4 Turbo and Supercharged 2012-2018
AUDI A1 8X 1.4 TD 2015-2018
AUDI A1 8X 1.4 TD 2015-2018
AUDI A1 8X 1.6 TD 2011-2014
AUDI A1 8X 1.6 TD 2010-2014
AUDI A1 8X 1.6 TD 2014-2018
AUDI A1 8X 2.0 TD 2011-2015
AUDI A3 8L 1.8 Turbo 1996-1999
AUDI A3 8L 1.8 Turbo 1999-2003
AUDI A3 8L 1.9 TD 2000-2003
AUDI A3 quattro 8L 1.8 Turbo 1999-2003
AUDI A3 quattro 8L 1.9 TD 2001-2003
SEAT Cordoba 2 2002-2010
SEAT Cordoba 1.9 TD 2002-2009
SEAT Ibiza (6L) 1.4 2002-2008
SEAT Ibiza (6L) 1.6 2003-2008
SEAT Ibiza (6L) 1.8 Turbo FR 2004-2008
SEAT Ibiza (6L) 2.0 2003-2008
SEAT Ibiza (6L) 1.9 D 2002-2005
SEAT Ibiza (6L) 1.9 TD 2002-2008
SEAT Ibiza (6L) 1.9 TD 2003-2005
SEAT Ibiza (6L) 1.9 TD FR 2004-2008
SEAT Ibiza (6J) 1.2 Turbo 2010-2015
SEAT Ibiza (6J) 1.4 Turbo 2009-2015
SEAT Ibiza (6J) 1.4 Turbo 2009-2015
SEAT Ibiza (6J) 1.6 2008-2015
SEAT Ibiza (6J) 1.2 TD 2010-2015
SEAT Ibiza (6J) 1.4 TD 2008-2010
SEAT Ibiza (6J) 1.6 TD 2009-2015
SEAT Ibiza (6J) 1.6 TD 2009-2015
SEAT Ibiza (6J) 1.9 TD 2008-2010
SEAT Ibiza (6J) 1.9 TD 2008-2010
SEAT Ibiza (6J) 1.9 TD 2008-2010
SEAT Ibiza (6J) 2.0 TD 2009-2015
SEAT Ibiza (6P) 1.0 2015-2017
SEAT Ibiza (6P) 1.0 Turbo 2015-2017
SEAT Ibiza (6P) 1.0 Turbo 2015-2017
SEAT Ibiza (6P) 1.2 Turbo 2015-2017
SEAT Ibiza (6P) 1.2 Turbo 2015-2017
SEAT Ibiza (6P) 1.4 Turbo 2015-2017
SEAT Ibiza (6P) 1.4 TD 2015-2017
SEAT Ibiza (6P) 1.4 TD 2015-2017
SEAT Ibiza (6P) 1.4 TD 2015-2017
SEAT Leon (1M) 1.8 Turbo 1999-2005
SEAT Leon (1M) 1.9 TD 2003-2006
SEAT Leon (1M) 1.9 TD 2000-2005
SEAT Leon (1M) 1.9 TD Syncro 2002-2006
SEAT Toledo 1,2 2012-2019
SEAT Toledo 1.2 Turbo 2012-2019
SEAT Toledo 1.4 Turbo 2012-2019
SEAT Toledo 1.8 Turbo 2001-2005
SEAT Toledo 1.8 Turbo 2007-2009
SEAT Toledo 2.3 1999-2000
SEAT Toledo 1.4 TD 2015-2019
SEAT Toledo 1.6 TD 2012-2019
SKODA Fabia (6Y) 2.0 2000-2001
SKODA Fabia (6Y) 2.0 2001-2007
SKODA Fabia (6Y) 1.9 TD vRS 2003-2008
SKODA Fabia (5J) 1.2 Turbo 2010-2014
SKODA Fabia (5J) 1.4 Supercharged and Turbo RS 2010-2014
SKODA Fabia (5J) 1.4 Supercharged and Turbo RS 2010-2014
SKODA Fabia (5J) 1.4 Supercharged and Turbo vRS 2010-2014
SKODA Fabia (5J) 1.4 Supercharged and Turbo vRS 2010-2014
SKODA Fabia (5J) 1,6 2007-2010
SKODA Fabia (5J) 1.6 TD 2010-2014
SKODA Fabia (5J) 1.6 TD 2010-2014
SKODA Fabia (5J) 1.9 TD 2007-2014
SKODA Fabia (NJ) 1 2015-2021
SKODA Fabia (NJ) 1 2015-2021
SKODA Fabia (NJ) 1.2 Turbo 2015-2021
SKODA Fabia (NJ) 1.2 Turbo 2015-2021
SKODA Fabia (NJ) 1,6 2015-2021
SKODA Fabia (NJ) 1.4 TD 2015-2018
SKODA Fabia (NJ) 1.4 TD 2015-2018
SKODA Fabia (NJ) 1.4 TD 2015-2018
SKODA Octavia (1U) 1.8 20v 1996-2000
SKODA Octavia (1U) 1.8 Turbo 2000-2001
SKODA Octavia (1U) 1.8 Turbo 2001-2010
SKODA Octavia (1U) 4×4 1.8 Turbo 2001-2006
SKODA Octavia (1U) 2.0 1999-2007
SKODA Octavia (1U) Estate 4×4 2.0 2000-2010
SKODA Octavia (1U) 1.9 TD 2005-2010
SKODA Octavia (1U) 1.9 TD 2003-2004
SKODA Rapid 1.0 Turbo 2017-2019
SKODA Rapid 1.0 Turbo 2017-2019
SKODA Rapid 1,2 2012-2019
SKODA Rapid 1.2 Turbo 2012-2019
SKODA Rapid 1.2 Turbo 2012-2019
SKODA Rapid 1.4 Turbo 2012-2019
SKODA Rapid 1,6 2013-2019
SKODA Rapid 1.4 TD 2015-2019
SKODA Rapid 1.6 TD 2012-2019
SKODA Rapid 1.6 TD 2012-2019
SKODA Rapid Spaceback 1.0 Turbo 2017-2019
SKODA Rapid Spaceback 1.0 Turbo 2017-2019
SKODA Rapid Spaceback 1.2 Turbo 2013-2019
SKODA Rapid Spaceback 1.2 Turbo 2013-2019
SKODA Rapid Spaceback 1.4 Turbo 2013-2019
SKODA Rapid Spaceback 1.4 TD 2015-2019
SKODA Rapid Spaceback 1.6 TD 2013-2019
SKODA Rapid Spaceback 1.6 TD 2013-2019
SKODA Roomster 1,2 2006-2015
SKODA Roomster 1.2 Turbo 2010-2015
SKODA Roomster 1,4 2006-2015
SKODA Roomster 1,6 2006-2015
SKODA Roomster 1.2 TD 2010-2015
SKODA Roomster 1.4 TD 2006-2010
SKODA Roomster 1.6 TD 2010-2015
SKODA Roomster 1.6 TD 2010-2015
SKODA Roomster 1.9 TD 2006-2010
VOLKSWAGEN Beetle 1.8 Turbo 1998-2010
VOLKSWAGEN Beetle 1.8 Turbo 2001-2005
VOLKSWAGEN Beetle 2.0 2003-2011
VOLKSWAGEN Beetle 2.3 2000-2005
VOLKSWAGEN Bora 1.8 Turbo 2001-2005
VOLKSWAGEN Bora 2.3 1999-2005
VOLKSWAGEN Bora 1.9 TD 2000-2005
VOLKSWAGEN Bora 1.9 TD 2000-2005
VOLKSWAGEN Golf (Mk4) 1.8 Turbo 1997-1999
VOLKSWAGEN Golf (Mk4) 1.8 Turbo 1999-2005
VOLKSWAGEN Golf (Mk4) 1.8 Turbo GTi 2001-2005
VOLKSWAGEN Golf (Mk4) 2,3 1997-2000
VOLKSWAGEN Golf (Mk4) 1.9 TD 2001-2003
VOLKSWAGEN Golf (Mk4) 1.9 TD 2001-2003 4Motion
VOLKSWAGEN Golf (Mk4) 1.9 TD 2002-2003
VOLKSWAGEN Golf (Mk4) 1.9 TD 2002-2003 4Motion
VOLKSWAGEN Polo (6N2) 1.4 TD 2001-2002
VOLKSWAGEN Polo (9N) 1,4 2002-2009
VOLKSWAGEN Polo (9N) 1.4 16v 2002-2009
VOLKSWAGEN Polo (9N) 1.8 Turbo 2005-2009
VOLKSWAGEN Polo (9N) 1.4 TD 2002-2009
VOLKSWAGEN Polo (9N) 1.9 TD 2002-2009
VOLKSWAGEN Polo (6R) 1.2 Turbo 2011-2014
VOLKSWAGEN Polo (6R) 1.2 Turbo 2009-2014
VOLKSWAGEN Polo (6R) 1,4 2009-2014
VOLKSWAGEN Polo (6R) 1.4 Turbo 2012-2014
VOLKSWAGEN Polo (6R) 1.4 GTi Turbo and Supercharged 2010-2014
VOLKSWAGEN Polo (6R) 1,6 2011-2014
VOLKSWAGEN Polo (6R) 1.6 TD 2009-2014
VOLKSWAGEN Polo (6R) 1.6 TD 2009-2014
VOLKSWAGEN Polo (6C) 1 2014-2017
VOLKSWAGEN Polo (6C) 1 2014-2017
VOLKSWAGEN Polo (6C) 1 2014-2017
VOLKSWAGEN Polo (6C) 1.0 Turbo 2014-2017
VOLKSWAGEN Polo (6C) 1.2 Turbo 2014-2017
VOLKSWAGEN Polo (6C) 1.2 Turbo 2014-2017
VOLKSWAGEN Polo (6C) 1.4 Turbo 2014-2017
VOLKSWAGEN Polo (6C) 1,6 2014-2017
VOLKSWAGEN Polo (6C) 1.4 TD 2014-2017
VOLKSWAGEN Polo (6C) 1.4 TD 2014-2017
VOLKSWAGEN Polo (6C) 1.4 TD 2014-2017

Check fitment always before ordering with catalogue and dimensions, or ask for our assistance.
