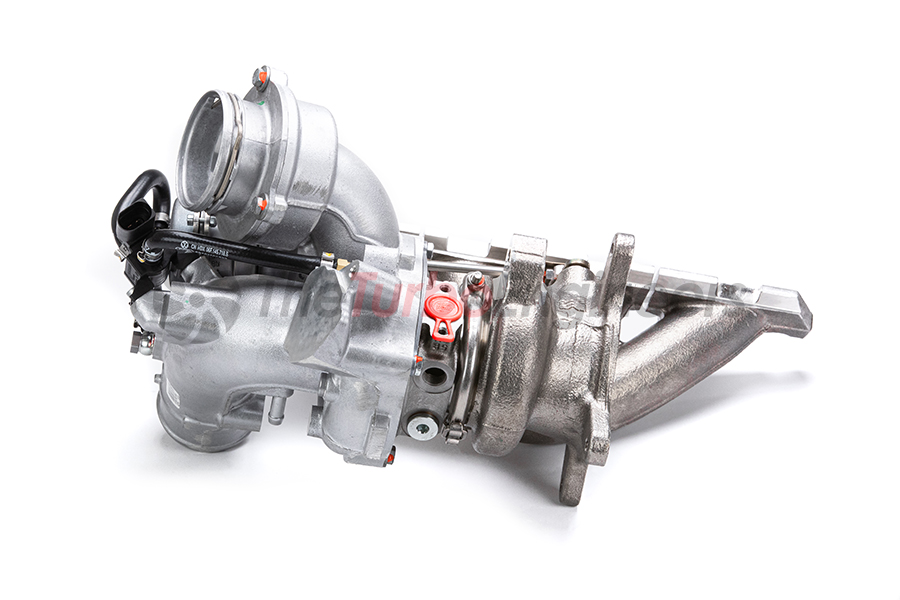

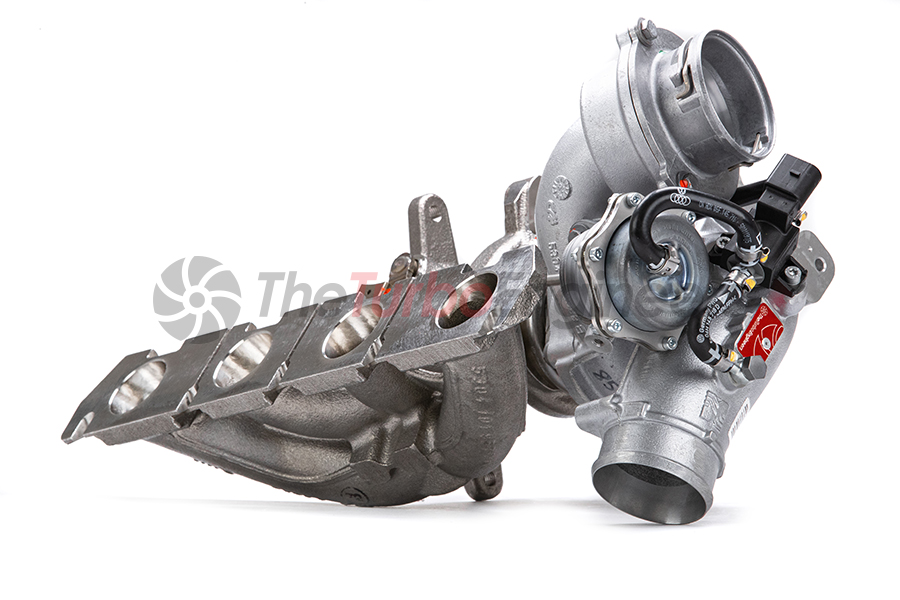

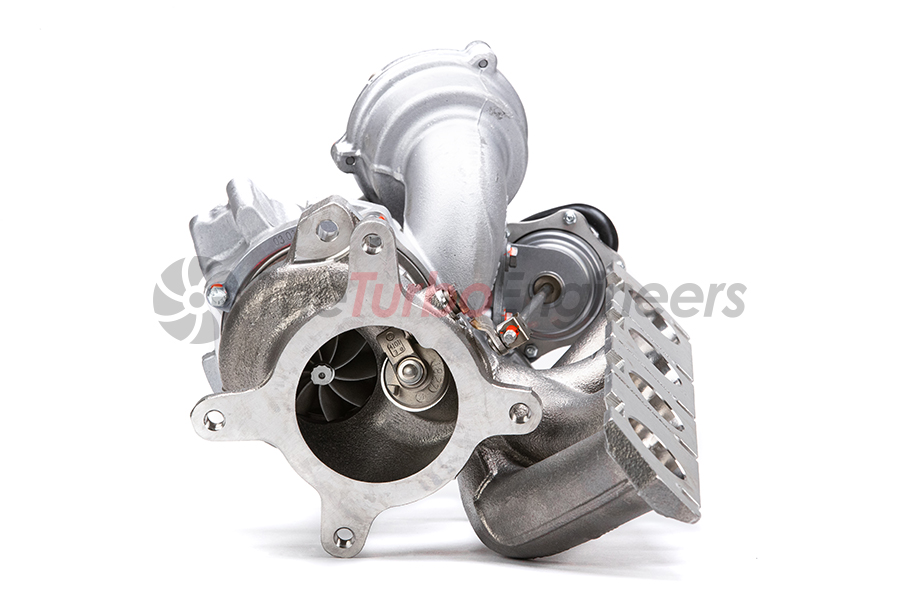

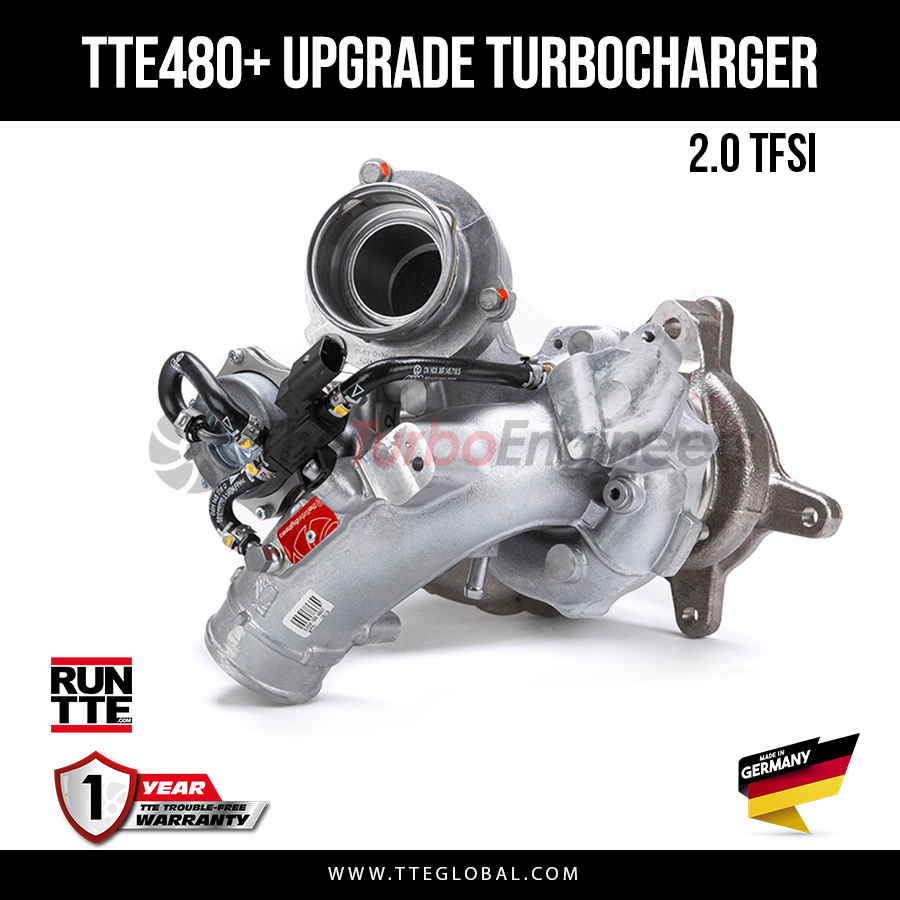

TTE480+ 5154 VAG 2.0 TFSI EA113 Upgraded Turbocharger

Ultimate. That’s what the TTE480 OEM+ Plug & Play upgrade turbocharger represents for the plug-and-play turbo category, designed for EA113 2.0 TFSI vehicles such as the Golf MK6R or Audi S3 8P. It offers incredibly fast response and big turbo power, delivering a broad powerband. This is a solid Stage 3+ hybrid turbocharger! Check out the dyno graphs below and see for yourself the smooth and extensive powerband this unit provides.

Send in your stock turbo for modification, or order a new one. If you choose to have your original turbo converted, we will send you a return label after your order, allowing you to ship your stock turbo to us for the modification. If you order a new unit, it will be delivered as a complete, brand-new turbo, and no exchange unit is required.

Carefully Designed, Built to Last

The TTE480 begins its journey as a brand-new BorgWarner K04-064 turbocharger, which is disassembled and rebuilt by TTE with precise engineering, creating a top-tier K04 hybrid. The TTE480 Turbocharger extracts serious performance from the 2.0 TFSI engine while still maintaining OE Plug & Play compatibility.

TTE480 Features:

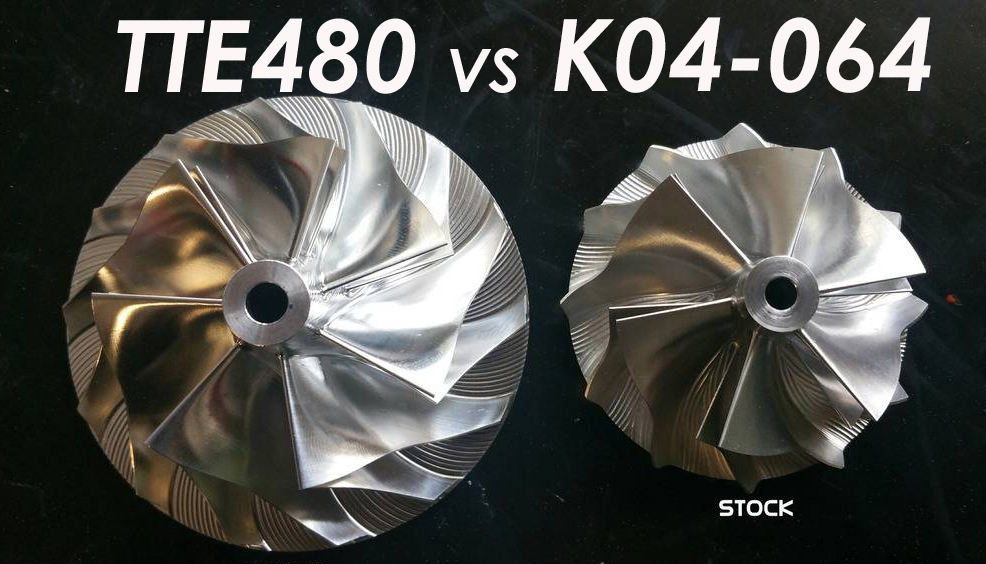

• A large TTE Billet compressor wheel with a highly efficient and slim blade profile for high output and a broad compressor map.
• A redesigned compressor housing, machined to optimized tolerances for maximum efficiency.
• A CNC-ported inlet, ensuring smooth airflow transitions from the intake connection.

Enhanced Flow and Turbo Sound to Match

The TTE CNC K04 silencer delete removes the internal baffle and replaces it with a direct bypass section. This eliminates restrictions, reduces surging, and enhances the turbo sound you’d expect from such a setup.

High-Flow Turbine

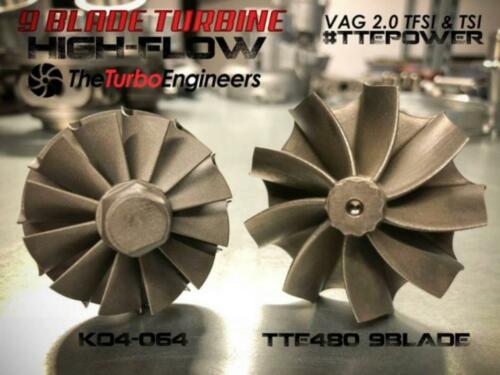

A larger TTE 9-blade high-flow turbine and shaft reduce backpressure and EGT. The exhaust manifold is CNC-ported at the cylinder head flange to ensure smooth gas flow and improve compressor efficiency.

Robust Bearings and Wastegate

This turbocharger uses TTE’s robust motorsport-grade journal bearing system, designed to withstand high loads and boost pressures when needed. The wastegate is an upgraded OE unit featuring reinforced TTE mounts to ensure reliable operation.

Balanced for Extreme Use

Precise balancing is critical for performance and durability. TTE turbochargers undergo a meticulous balancing process, including:

• Slow-speed balancing (up to 2800 RPM).
• High-speed CHRA balancing (up to 250,000 RPM) on TTE’s in-house VSR machine.

Each turbocharger comes with a test result document, serial-numbered for quality assurance.

Specifications

• Original BorgWarner turbocharger as the base
• Genuine OEM Pierburg N75 valve
• Upgraded original actuator
• Extremely low turbo lag
• TTE Billet compressor (51 mm inlet)
• TTE 9-blade high-flow turbine (54 mm outlet)
• CNC-ported exhaust runners (original VAG exhaust manifold gasket may require modification)
• TTE reinforced bearing system
• Plug & Play installation
• Up to 490 hp (450+ hp on 99RON fuel without WMI or ethanol)
• High-speed VSR-balanced assembly
• NOTE: Requires ECU remapping by a professional!
• Made in Germany
• 1-year TTE warranty

Optional TTE Heat Shield

The TTE heat shield is an optional extra that improves performance and reduces engine bay temperatures.

• Non-woven silicate fiber with stainless steel insulation foil
• High mechanical and vibration resistance
• Continuous heat resistance up to 1300°C
• Compact dimensions and protection for adjacent components
• Up to 600°C lower surface temperatures

Performance Example:

VW Golf Mk6R TTE480
Stage 3 RSperformance software Croatia
TTE480 turbo
Power: ~460 hp, 550 Nm
Stock engine, stock injectors, stock LPFP
DSG TVS Stage 3
1550 kg
12.5° ambient temperature
98 RON + WMI

100-200 km/h: 7.88 sec (DRAGY)
