Bar-Tek VAG 1.8T Tuning kit (Garrett GTX)

Description

1.8T 20V up to the devil like 666hp power! Stage 5 tuning kit from BAR-TEK® you can achieve a demonic performance for your 1.8T.

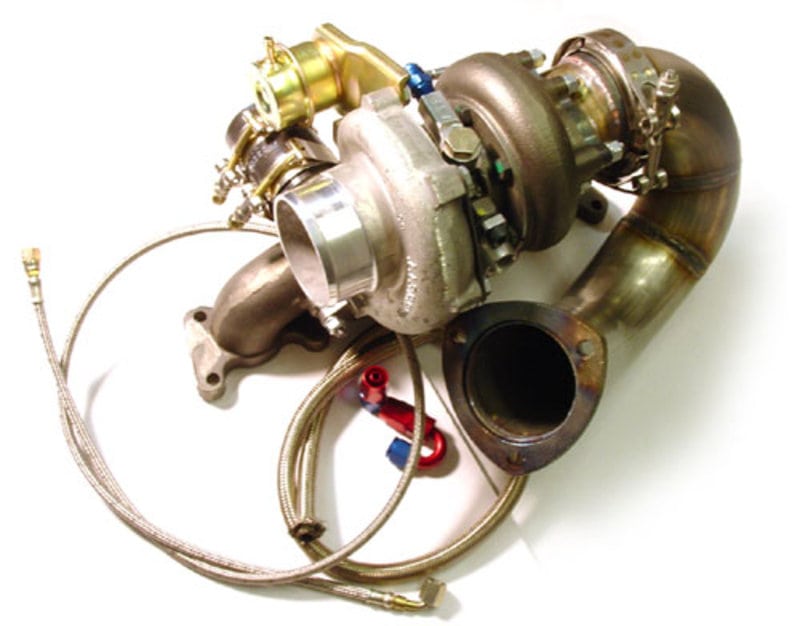

BT Stage5 kit is built around the Garrett GTX3071R Gen.II 0.63A/R turbo, while it’s not a small turbo – it’s capable of delivering high end torque at low revs already.

Obviously, this kind of set will need your engine to be rebuilt if you want it to last – see our Ultimate pistons/rods/bearing kits for that.

• Garrett GTX3071R Gen.II Turbocharger T3
• Exhaust housing 0.63 A/R
• 0.48bar wastegate actuator
• 1.8T Manifold T3
• 76 mm Downpipe-kit to weld by yourself (DIY!)
• V-band flange for exhaust housing
• 630cc Siemens injectors
• BAR-TEK 44 fuel pump
• Connection kit for BAR-TEK 044 fuel pump
• Cable kit for BAR-TEK fuel pump
• Sytec holder for fuel pump
• 1.8T Splitter Blow Off BAR-TEK®
• 1.8T Race spark plug set NGK
• 1.8T upgrade Mass air flow meter
• Oil and water lines for Garrett turbocharger
• Gasket from exhaust manifold to cylinder head
• T3 gasket from turbocharger to manifold
• Copper nuts for fixing turbo to manifold (holes must be drilled to M10)
• Manifold Turbo nuts BAR-TEK

This tuning kit does not include software, professional engine tuning will be needed.
