IE 5bar MAP/PUT sensor set, VAG EA888 Gen3 engines

Description

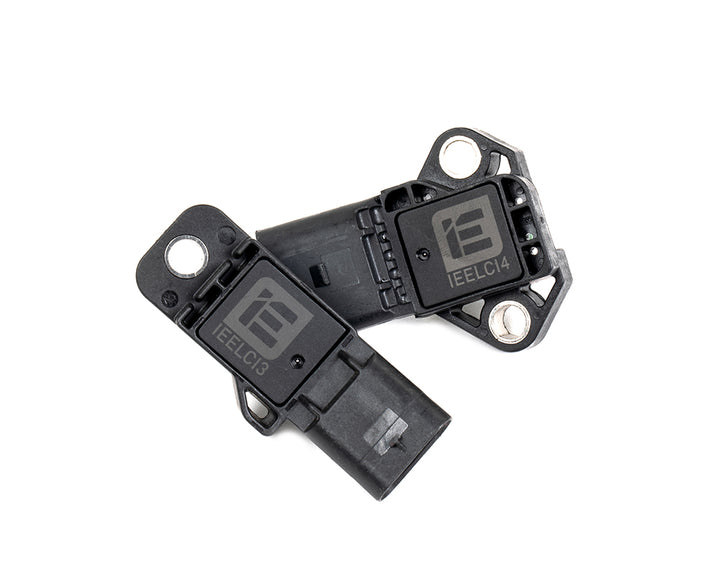

MQB High Boost Sensor Kit – IE 5 Bar MAP Sensor Kit

The IE 5 Bar MAP Sensor Kit is designed to replace the factory MAP (manifold absolute pressure sensor) and PUT (post-throttle pressure sensor) in VW & Audi MK7/8V GTI, Golf R, GLI, A3, and S3 EA888 Gen 3 engines. Upgrading to the 5-bar sensor kit allows the ECU to read higher boost pressures, which is essential for Stage 3 and Stage 4 setups with larger turbos and increased boost levels.

These sensors install directly into the factory charge pipes and intake manifold and are plug-and-play compatible with the factory engine wiring harness.

Note: Requires ECU tuning specifically calibrated for 5-bar sensors by your tuner. The car will not start with these sensors if the ECU is programmed for stock sensors.

Kit Includes:

• 1x IE 5 Bar MAP Sensor
• 1x IE PUT Sensor

Calibration Data:

• 11 HPA = 0.5 V
• 5000 HPA = 4.5 V
