Name: BMW B58, Motiv ReFlex+ advanced PI controller, integration module
SKU: RFX.F02.UI6-04
Availability: InStock

Description

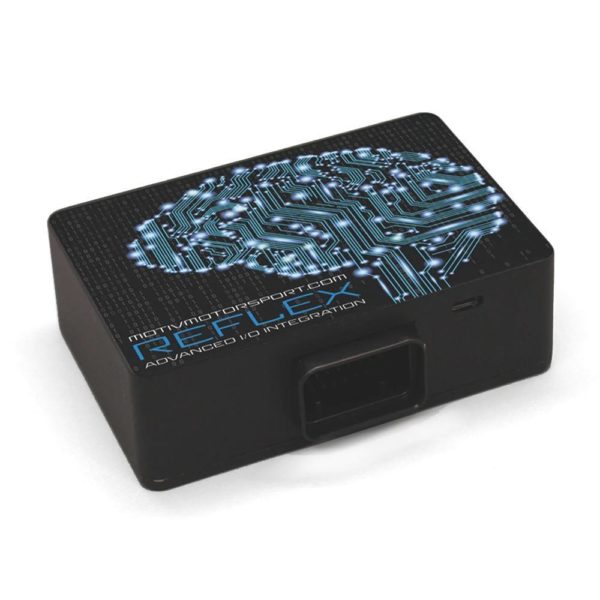

The MOTIV ReFlex+ controller is one of the most advanced control systems to operate devices such as port injection, wmi, fuel pumps and more. What makes Reflex Plus shine, is it’s exceptional capability to integrate with cars CANbus therefore operating perfectly together with your vehicles ECU, offering it also additional data channels and functions while doing so. This kit is designed for BMW B38 3.0L engine, see also other variants from our selection.

Port Injection controller
First of all, RFX+ can function as a standalone port fuel injector controller for up to eight-cylinder engines or as an advanced I/O integration module to control additional components through optional CANbus integration. Users can select batch, semi-batch, or sequential fire modes for optimal injector operation.

The ReFlex+ is a versatile controller that can be configured for various applications. As a standalone port fuel injector controller, it can be used on engines with up to eight cylinders. The controller is fully customizable to suit any vehicle through programmable cam, crank, and map sensor inputs in the tuning software. Pre-configured universal and vehicle-specific maps are also available for convenience (see download files below).

Programmable outputs
ReFlex+ also features configurable outputs that can output on/off, digital, analog, frequency (25hz), and/or PWM signals to control performance modifications, e.g.

Water Methanol Injection Kits
Boost Control Solenoids
Nitrous Kits
Fuel Pumps
Relay Triggers

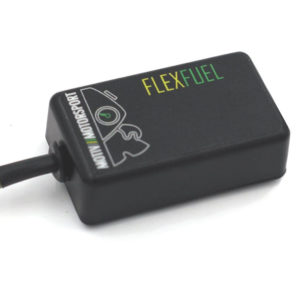

BMW N54 Flex Fuel Signal

Programmable inputs and CAN integration
Incorporating additional data into the control strategies of the ReFlex+ is possible through its multiple inputs, which can integrate with the factory ECU through CANbus integration. An input is dedicated to an ethanol content sensor for monitoring and flex fuel mapping, while the other inputs can monitor or process additional information from external sensors or engine ECU outputs.

With this function you can for instance bring new channels all the way to your good old MHD Flash application and datalogs with ease.

Typical extra channels:

Fuel Pressure
Exhaust Gas Back Pressure
Oil Pressure
Other fluid Pressure
Crankcase Pressure

This device brings a professional level of control, function, and versatility to tuning any high output race vehicle by providing the most accurate and precise supplementary sequential fuel injection with the ability to control other advanced features all in one place. Use multiple digital and analog signals for safety, data logging, or adaptive tuning features. It has the unique ability to operate both as a standalone and in parallel with the DME/ECU, depending on your setup!
