VRSF HD intercooler, BMW X5 / X6 models 2006-2018 (inc. Diesel)

Description

VRSF intercooler kits for high power BMW’s.

BMW intercooler (FMIC)
In BMW turbo engine, like in all turbo engines the intake air temperature is absolutely significant. With every degree up or down, you will lose or gain that previous horsepower. Hot air is less dense and oxygen rich by nature (resulting in less power output), but in addition to that your Engine Control Unit will actively limit the engine power whenever the IAT shows any signs of rising.

Therefore a high performance intercooler is always a beneficial upgrade, even in stock engine.

VRSF intercoolers are designed specifically for each BMW model and engine to offer an efficient solution.

BMW X5 and X6 models intercooler FMIC

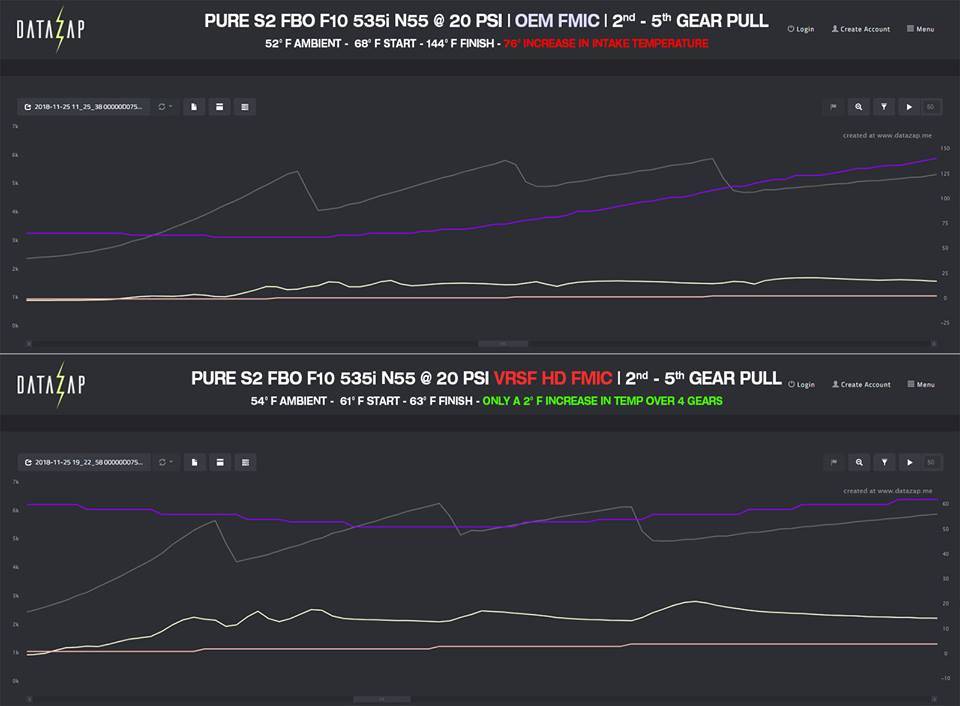

This intercooler kit fits in listed models, both gasoline and diesel engines – see closer model listing below. This core comes with superior cooling capacity compared to OEM part. For example, with similar core in F10 535i on a 54 degree day, the VRSF Race HD intercooler maintains a safe temperature through the entire 2nd through 5th gear pull while only rising 2 degrees whereas the OEM intercooler rose 76 degrees at the same boost levels (20 psi).

Please mention your cars VIN chassis number in order details.

Intercooler core and construction

OEM BMW tube and fin intercooler is designed to support low boost levels and air flow. However, once boost levels and air flow are increased, the OEM unit simply can not keep up with the cooling demands any more.

VRSF core comes with high density bar-and-plate design to allow efficient temperature reduction with minimal pressure drop. Intercooler is specifically designed for upgraded turbo cars running larger turbos and higher boost pressures. Core features a cast aluminum end tanks for improved flow and durability.

Installation

All needed accessories are included, to make installation possible even in home garage if you will. Normal tools and equipment with some extra time should be enough.

This kit doesn’t need modifications for bumper or structures.

Depending on your trim level and model, it’s always good to be prepared for some minor trimming or honing for that perfect fitment.

Keypoints

• Bolt-on fitment, all needed accessories included.
• Checked and pressure tested high quality cores.
• Intercooler kit doesn’t need engine tuning (although it will increase the benefits)
• Product comes with VRSF warranty

Confirmed fitment for following models:
2012 – 2018 F15 BMW X5 28i, 35i & 40i including xDrive (N20 & N55)
2012 – 2018 F15 BMW X5 25d, 30d & 40d including xDrive (B47 & N57)
2013 – 2019 F16 BMW X6 28i & 35i including xDrive (N20 & N55)
2013 – 2019 F16 BMW X6 30d & 40d including xDrive (N57)
2009 – 2013 E70 BMW X5 35i & 40i including xDrive (N55)
2006 – 2013 E70 BMW X5 30d & 40d including xDrive (N57)
2007 – 2014 E71 BMW X6 35i & 40i including xDrive (N54, N55)
2007 – 2014 E71 BMW X6 30d, 35d & 40d including xDrive (M57, N57)

Most of the common BMW intercoolers are stocked locally in our warehouse in Finland. We get weekly shipments from the manufacturer for optimal delivery times with backordered items.

Tip: Have a look at aluminium charge pipes for BMW in our selection as well.

How intercooler works and why? Youtube animation:

Youtube pick, Engineering Explained / Jason and few words about intercoolers:
